FLO (float, maximum/minimum level probe, NO/NC)

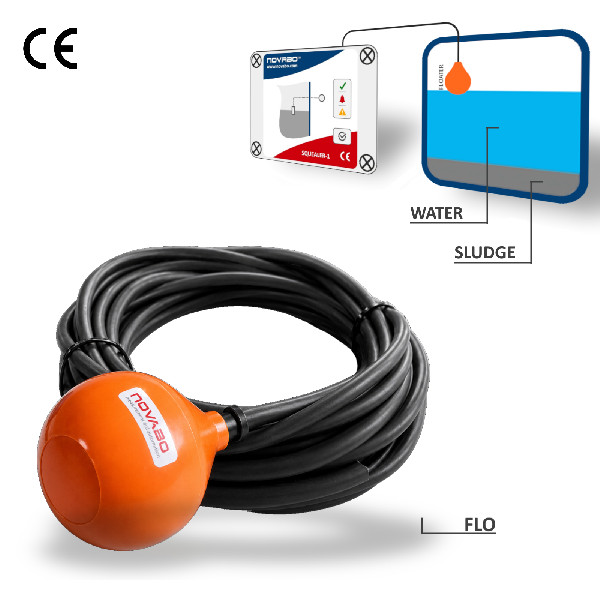

The Flo probe is a float-type level sensor used to measure the maximum liquid level in a tank. It can be used in any type of reservoir. When the liquid level rises, the internal element in the float moves, changing the signal, which in turn triggers an alarm at the probe output (signal switches to the opposite state).
Technical Data
Maximum supply voltage: 250 V
Maximum switching current: 5 A
Maximum switching power: 750 W
Cable: length 5 m, 10 m, 15 m
Protection rating: IP 68
Liquid temperature: -30°C ÷ +60°C
Ambient temperature: -30°C ÷ +60°C
Dimensions: Pear-shaped, Ø 80 mm, height 114 mm
Weight with cable: 760 g
Mounting method: vertical
CE compliance: Yes
