SQUEALER-GSMÂ (3 probe inputs + 1 hatch input, 2 outputs, 230V, battery optional, GSM, USB)
The SQUEALER-GSM controller is a modern, microprocessor-based device for continuous monitoring of one of the selected probes (MAX, OILER, SLUDO). The basic hardware parameters of the controller are 3 probe zones + 1 hatch input, 2 relay outputs, LEDs indicating normal status, failure status and alarm status, BUZER generating a sound signal informing about the alarm, relay output, activated at the moment of alarm.

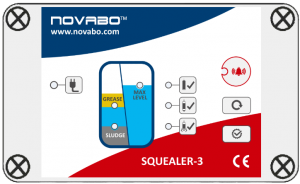

Front panel description:
– LED lights green – probe is OK
– LED lights red – GENERAL ALARM
– LED blinks green – ACCIDENT
– Short press of a button – reset the alarm buzzer.
– Long press of a button – Long press – test LED optical signaling, acoustic and relay outputs. Test possible only in normal state (without alarm).
Technical data
Power supply: 230VAC ±10%
Power consumption (instantaneous, during GSMÂ transmission): 10VA
Relay outputs REL1, REL2 (potential-free contacts)
NO or NC, 2A / 120V AC or 2A / 24V DC
Ambient temperature: -40 to + 60 ° C
Mechanical strength: IK 07
Dimensions of the housing (without glands) (H x W x D): 187 x122 x 90 mm
Cable glands:
• Probe inputs: 3 x M12, cable dimensions Ø 4.0-6.0 mm
• Power supply: 1xM12 for cable Ø 4.0-6.0 mm
• Sabotage: 1xM12 for cable Ø 4.0-6.0 mm
